This is an inexpensive DIY MIDI controller device for USB.
It consists of a simple Atmel AVR ATMega16 with a
of a low-speed USB device from Objective Development
Read the latest news

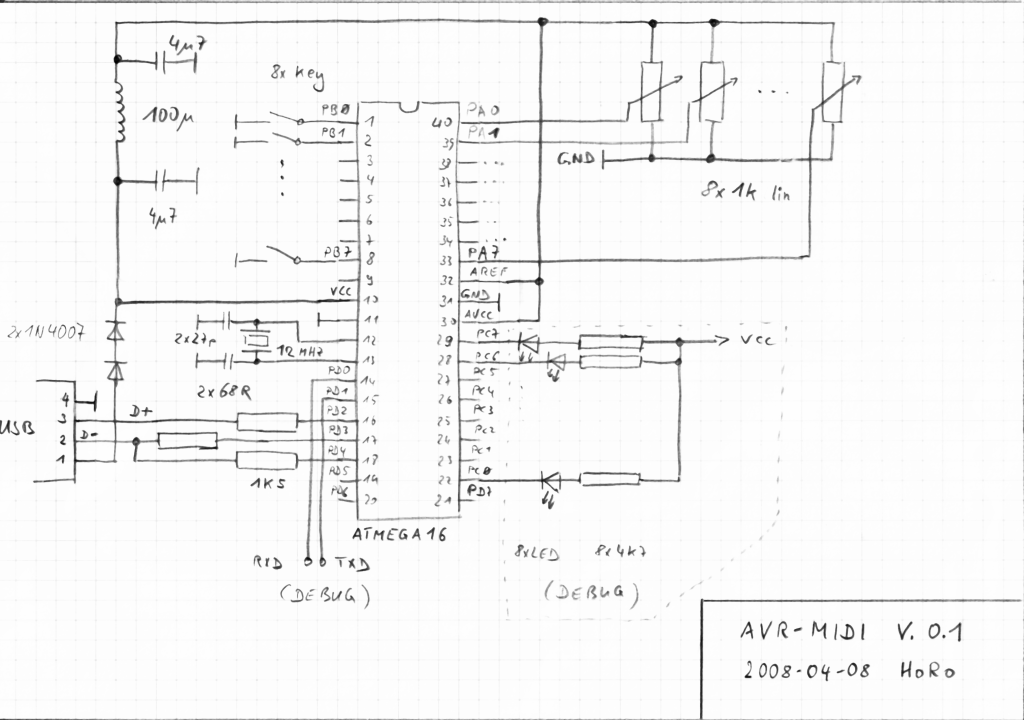

Download schematics and demo software
This USB MIDI is build upon an Atmel AVR ATMega16, powered from USB through
2 diodes (3.5 volts). Up to eight potentiometers (AVCC/AGND) are connected
to the analog inputs (PORTA) which are converted to a range from 0x00..0x7F
to create midi controls (CC).
On my Atmel AVR STK500 starter kit I've tested a simple key routine (PORTB),
which sends eight "white" keys (60, 62, 64, 65, 67, 69, 71, 72).
Serial debugging is enabled.
MIDI messages are received from PC but for now only a LED is toggled
(and a debug message sent to UART).
This interface shows up on my linux PC and works fine with vanilla kernel
>=2.6.23.x or with a little patch
for my very old sidux
realtime kernel 220.127.116.11-rt9.
This device is class compliant, I use device class audio/midi stream. The device
descriptors in my software are based upon
The PID=1508 and VID=5824 are sponsored by
